| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Driven Type | Electric |
| Automation Grade | Semi Automatic |
| Click to view more | |
Product Details

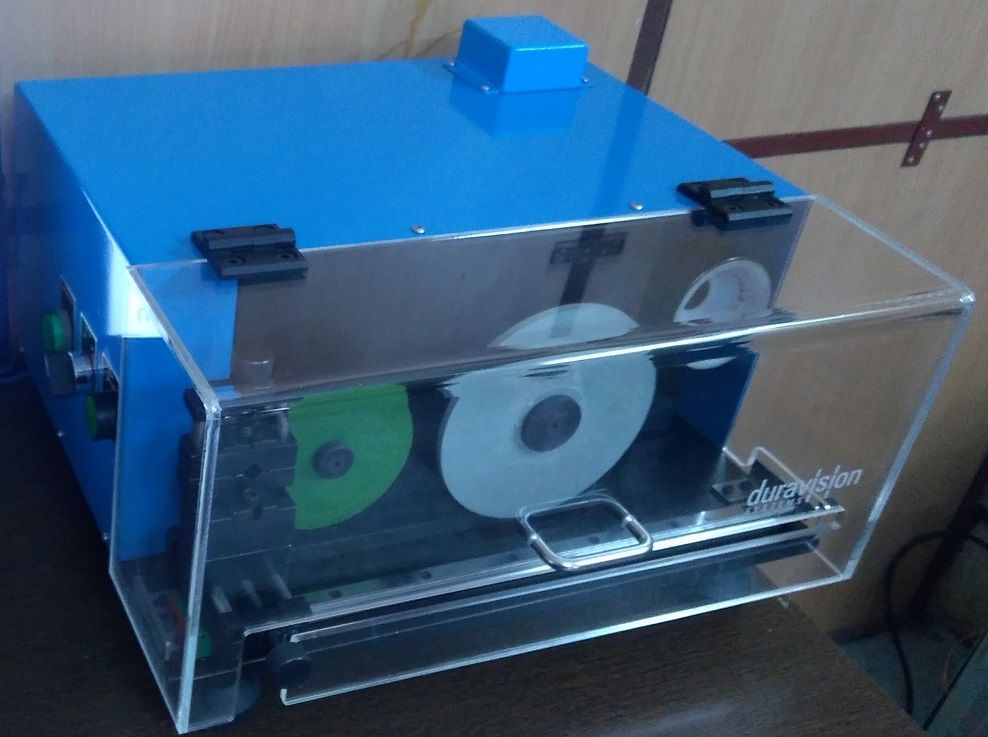

Inspects Crimp Cross Section for various dimensions and defects. It is a fully self-contained unit – consisting of crimp cutting / grinding & etching unit, small foot print PC, Monitor, KB/Mouse. No need to connect to a separate PC.
Uses high resolution industrial color camera with integrated light and lens
Measures and records all relevant crimp parameters – crimp width, height, support angle, burr width and height, CFE, DFE, base thickness, enclosed area, strand count
Unique crimp holder makes it easy to locate the crimp and get a good image. No changing of sample between cutting, grinding and inspection. Etching unit is chemical / electrolytic.
High Magnification gives high measurement accuracy
Crimp size – up to 8 / 20 sq. mm
Zoom In ‘Magnify’ option allows user to view crimp cross section more closely
Creates reports in IMAGE, PDF and MS XLS formats
Multi-level password protection prevents unauthorized tampering of settings
Audit Trail keeps track of parameter changes and other operator activities
Calibration master supplied with the system makes periodic calibration a breeze
Dimensions: 450 x 400 x 250 mm (L x W x H)
